Side Grip Vibratory Hammer



  • Side Grip Vibratory Hammer DPD-S


  • Side Grip Vibratory Hammer DPD-S


  • Side Grip Vibratory Hammer DPD-S


  • Side Grip Vibratory Hammer DPD-S

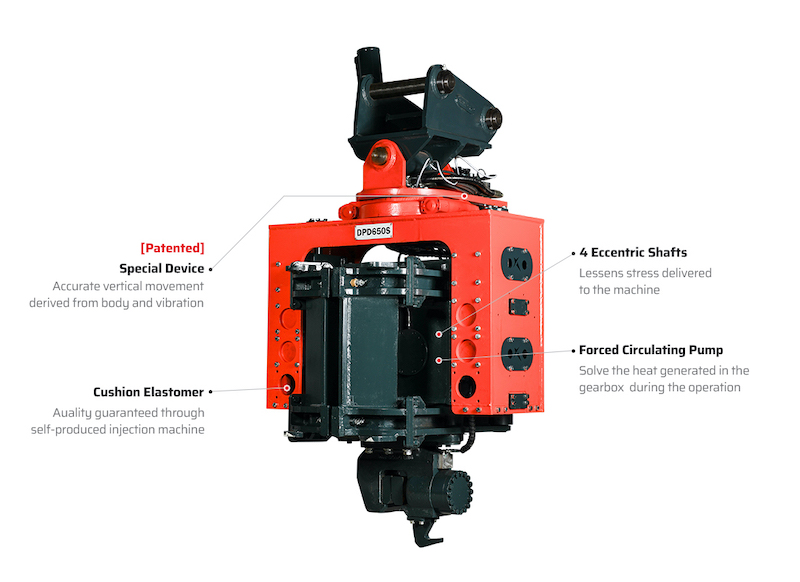

  • Side Grip Vibratory Hammer DPD-S DETAILS


    • Side Grip Vibratory Hammer Features and Advantages:
    • - 4 Eccentric Shafts: provides powerful low-frequency vibration and lessens stress to the machine
    • - Forced Circulating Pump: solve the heat generated in the gearbox during the operation
    • - Vertical Vibro Guide: precise and steady vertical movement during the entire operation
    • - Cushion Elastomer: quality guaranteed through self-produced injection machine
    • - Designed to drive and extract all types of piles (sheet pile, trench sheet, H-beam, tubular steel pile, timber pile)
    • - Gear oil supplied to the bearings prevents heat generated during the operation
    • - Maximum power of precision during the pile driving process
    • - Optimum solution for sites with limited access or space (low overhead clearance, narrow passageways, headroom)


  • Side Grip Vibratory Hammer Specifications

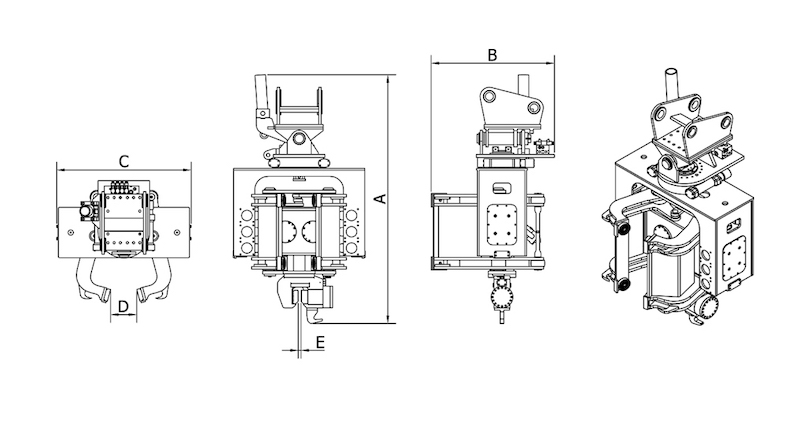

  • Side Grip Vibratory Hammer DPD-S DRAWING

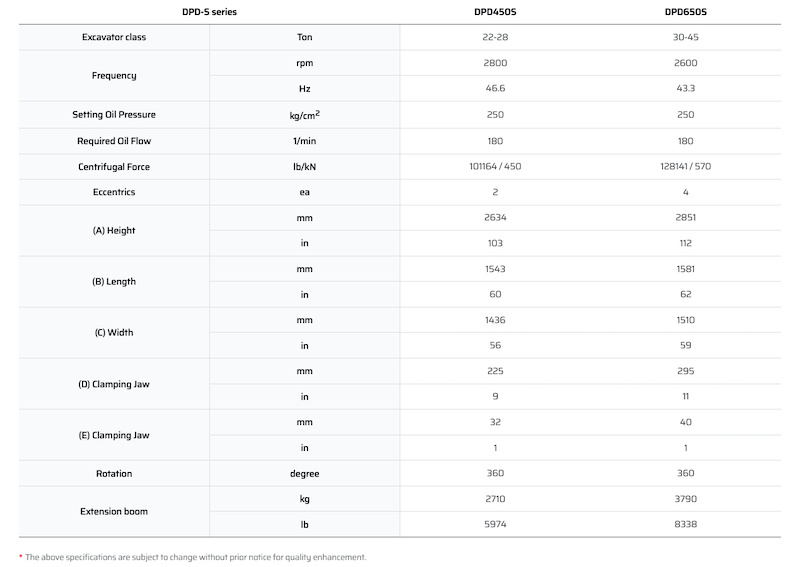

  • Side Grip Vibratory Hammer DPD-S SPECIFICATIONS
